Measurement

The Measure page supports position, distance, and area measurements. Interpret results according to source-data accuracy, coordinate units, and project acceptance criteria.

Type	Basic operation
Position	Left-click to add a coordinate point.

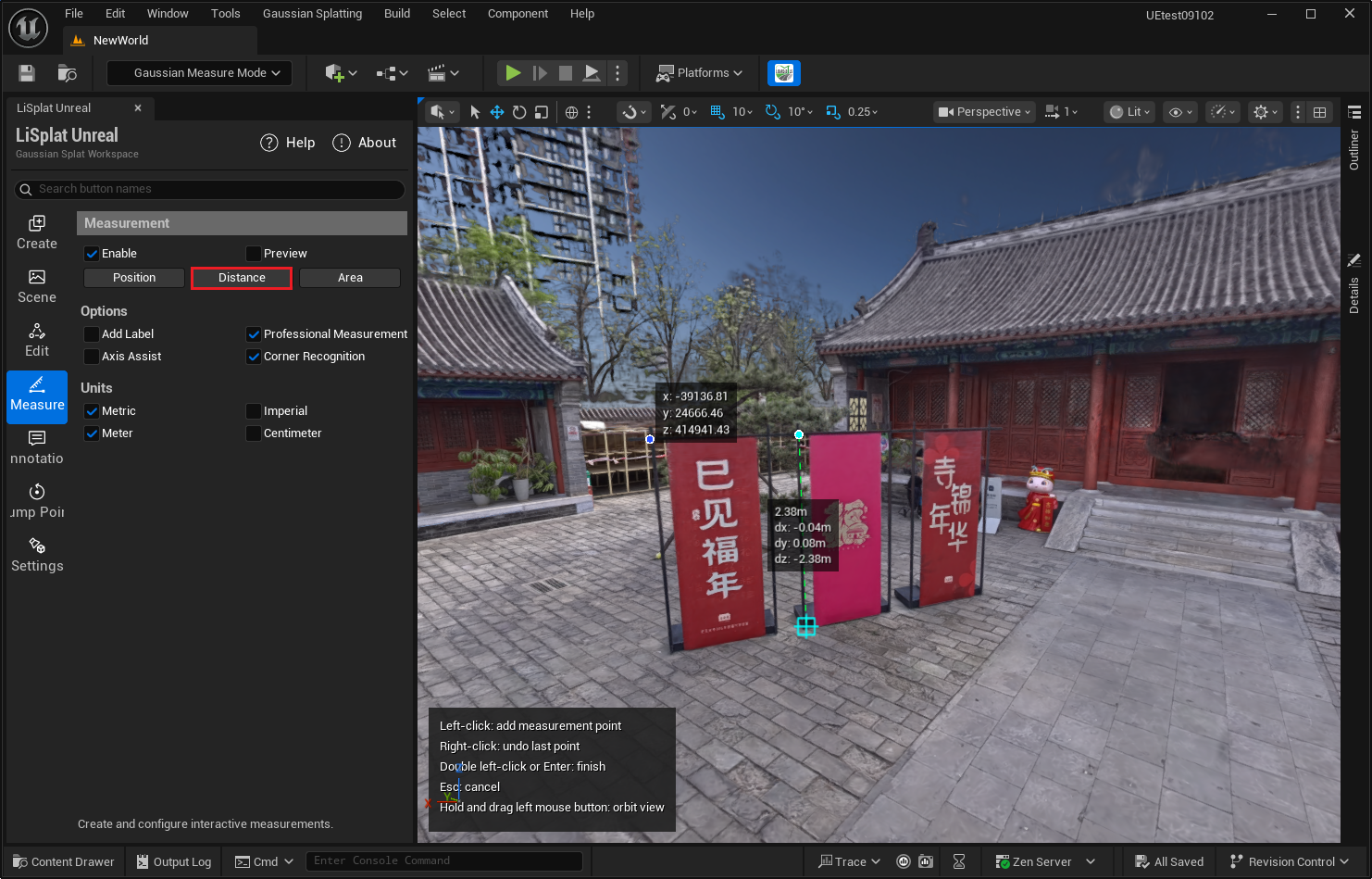

Distance	Left-click to add points; double-click or Enter to finish; right-click or Backspace to undo; Esc to cancel.

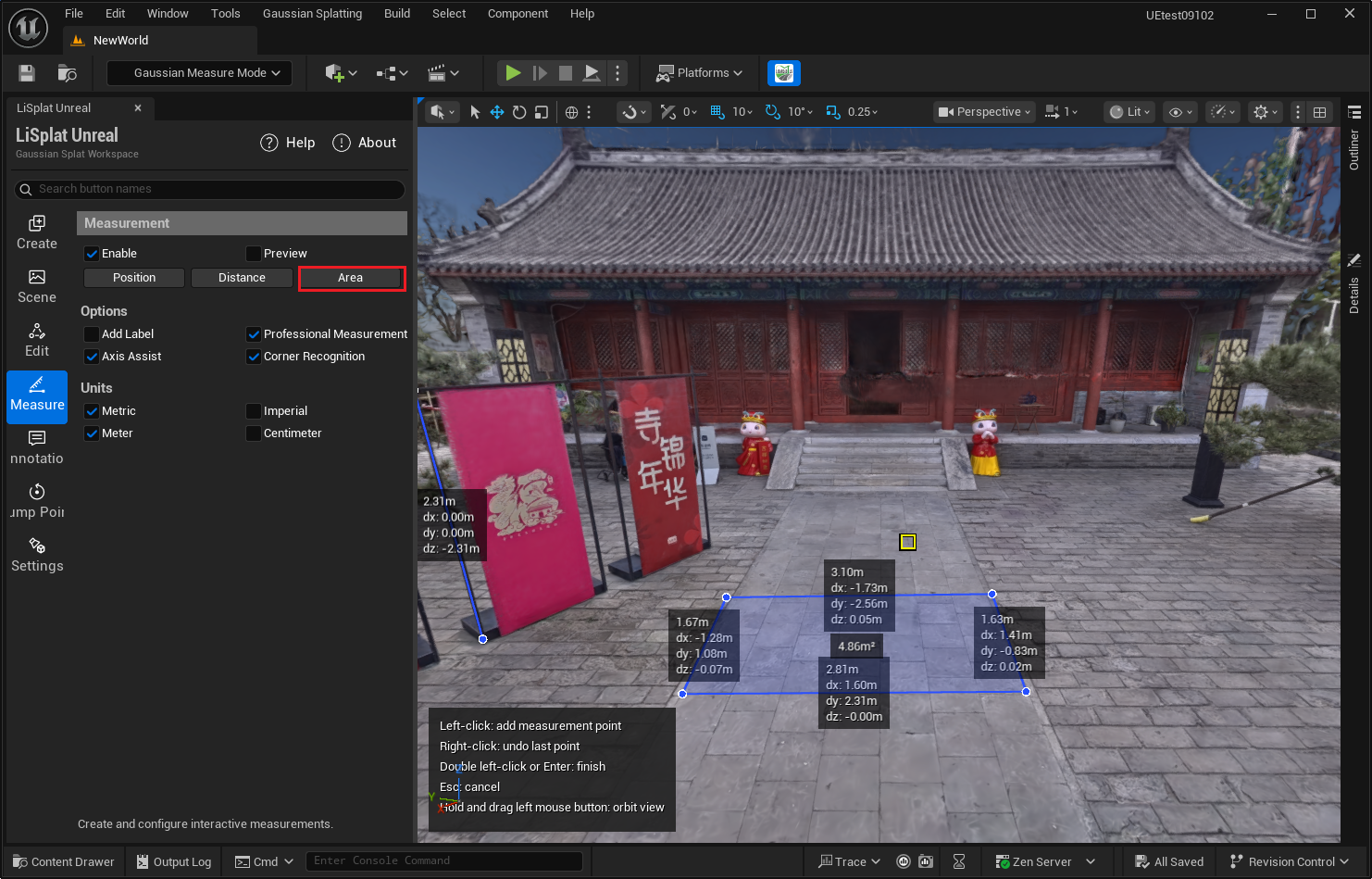

Area	Left-click to form a region; double-click or Enter to finish; right-click or Backspace to undo; Esc to cancel.

Use the panel to select metric or imperial units. Auxiliary axes and corner recognition can assist snapping.
