GetLevelFittedNO

ULodGlspComponent · API Reference

Calculates LOD from camera distance and the longest side of the Chunk.

cpp

int32 GetLevelFittedNO(float fDistance) const;

The LOD becomes approximately one level coarser each time the distance ratio doubles. Returns INDEX_NONE when no valid LOD is available.

C++ Example

cpp

const float Distance = FVector::Distance(
    CameraLocation, Chunk->GetComponentLocation());
const int32 Lod = Chunk->GetLevelFittedNO(Distance);

Blueprint Example

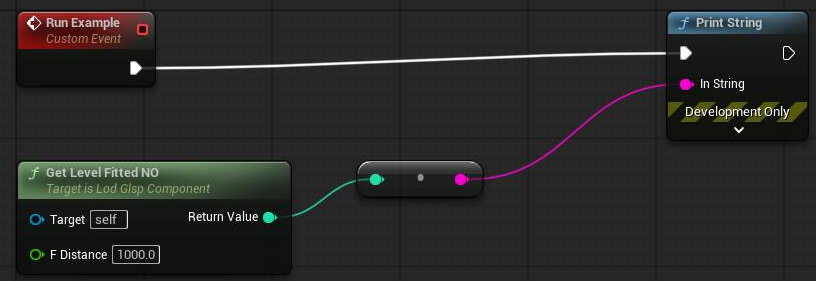

Get Level Fitted NO Blueprint example

See Also

GetLevelFittedNormalizedDistance: uses the Chunk bounding-sphere radius and is better suited to differently sized Chunks.
ChangeLevel: applies the calculated LOD.

Back to ULodGlspComponent
